Bridges, beams, arches, cables
Experimental equipment for investigating a suspension bridge, a Gerber beam and various arches.
SE 110.18
Forces on a suspension bridge
Supporting cable force and demonstration of bending moments between the roadway support and supporting cables.
SE 110.12
Lines of influence on the Gerber beam
Using methods of section and conditions of equilibrium of statics to determine support forces.
SE 110.17
Three-hinged arch
Symmetric and asymmetric arch subjected to point, distributed or moving loads.
SE 110.16
Parabolic arch
Differences between statically determinate and statically indeterminate arches under load.
SE 110.30
Dial gauges
Measurement of deformation during mechanical experiments.
SE 112
Mounting frame
Base unit for clear and simple set-up of experiments on statics, strength of materials and dynamics.
SE 200
MEC - Frame digital & smart
Mounting frame for setup and digital connection, extensive experiments from engineering mechanics.
SE 200.02

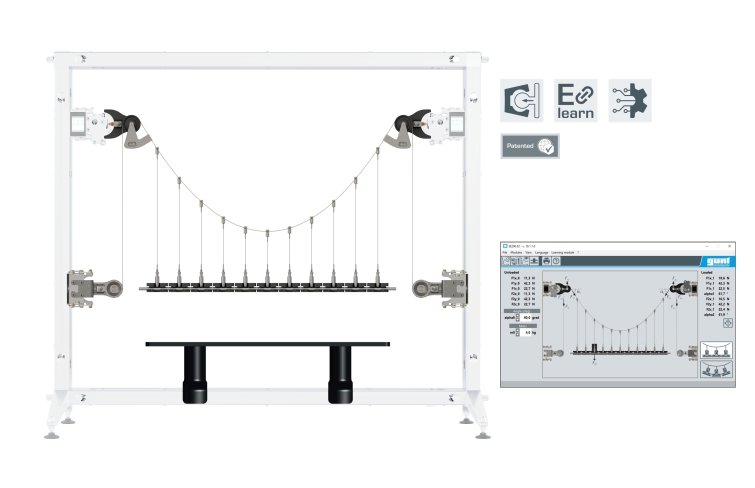

MEC - Forces on a suspension bridge
Supporting cable force and demonstration of bending moments between the roadway support and supporting cables; experiments with rigid or flexible roadway.
